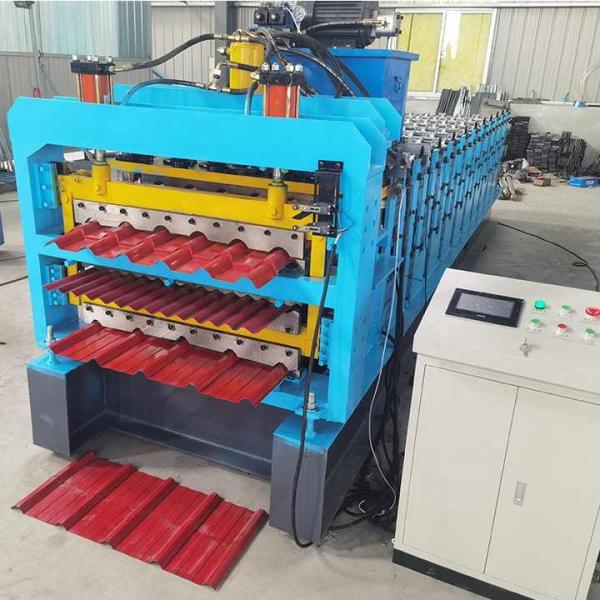

Roof Sheet Double Layer Forming Machine,it is our company most popular products in building materials machine. For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,glazed tile roll forming machine, ridge cap roll forming machine and other type profile panel roll forming machine.
When you choose roof sheet three layers roll forming machine, you had better learn popular shape in local,also raw material is an important considering data, if do not have good supplier in local, we can assist you purchase it in China together. we are professional factory and in this area for many years, any requires please contact us at any time
working principle.
The tile pressing machine belongs to the cold bending roll forming machine, which mainly presses the color steel plate into the required shape, size and shape by rolling. When the machine works, the power group drives the roller shaft, and the roller forming wheel is used to roll the color steel plate with the specified thickness. It is widely used in industrial and civil buildings, such as factory buildings, warehouses, gymnasiums, exhibition halls, cinemas and other rooms and walls.
| No | Item | Data |
| 1 | Raw material width | 1000-1200 mm |
| 2 | Sheet effective width | 750-1000 mm |
| 3 | Raw material | Color steel sheet or galvanized steel sheet |
| 4 | Material thickness | 0.3-0.8 mm or customized |
| 5 | Forming roller material | 45# steel plated with chrome |
| 6 | Shaft diameter | 80mm |
| 7 | Forming roll station | 13-18steps |
| 8 | Main motor power | 3 KW 4 KW 5.5 KW(according to type) |
| 9 | Hydraulic power | 4 KW (according to type) |
| 10 | Control system | PLC control |
Roll Forming Machine Components:
| No. | Name | Qty |
| 1 | De-coiler | 3Set |
| 2 | Roll Forming Machine | 1 Set |
| 3 | Hydraulic Cutting Devic | 1 Set |
| 4 | PLC Control Box | 1 Set |
| 5 | Output table | 1 Set |
Roof sheet three/double layer roll forming machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
